ESD Anti Static Ziplock Bags
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Translucent Aluminum Plating | Surface: | Anti Static |
|---|---|---|---|
| Surface Resistance: | 10e3-10e11 Ohm | Thickness: | 0.073mm |
| Industrial Use: | Ectronics | Logo: | Accept Custom Logo |
| Highlight: | esd shielding bag,anti static storage bags |
||

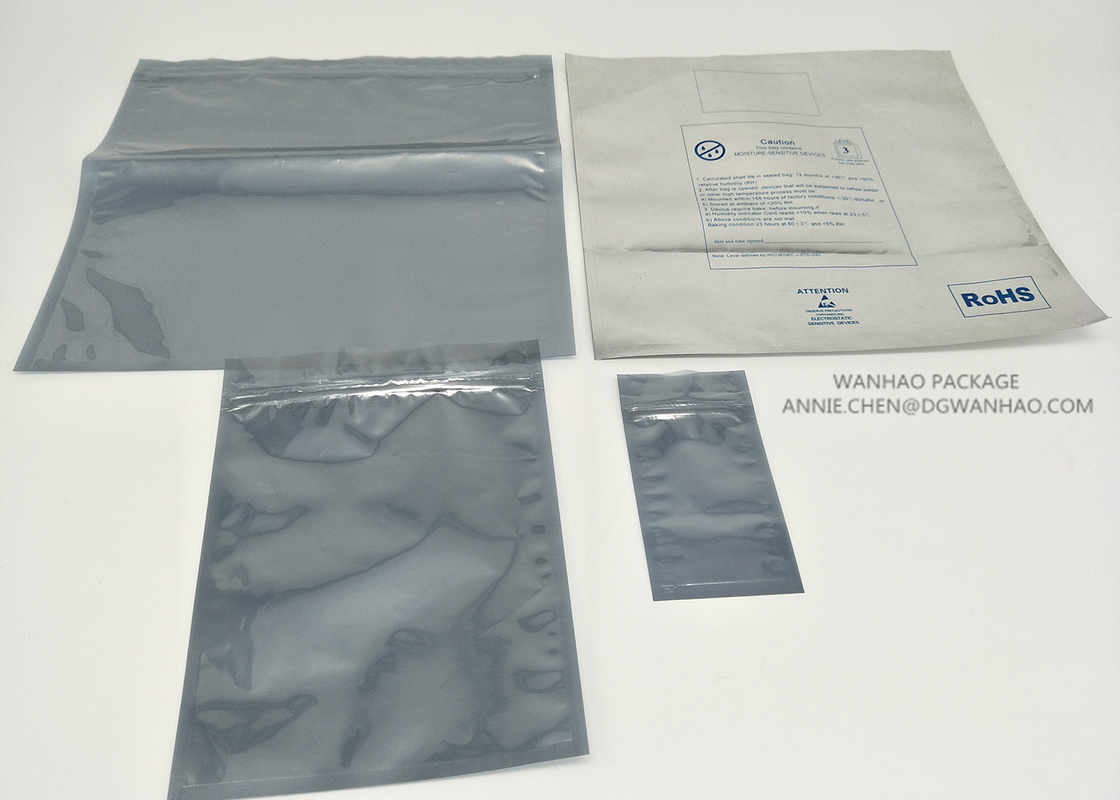

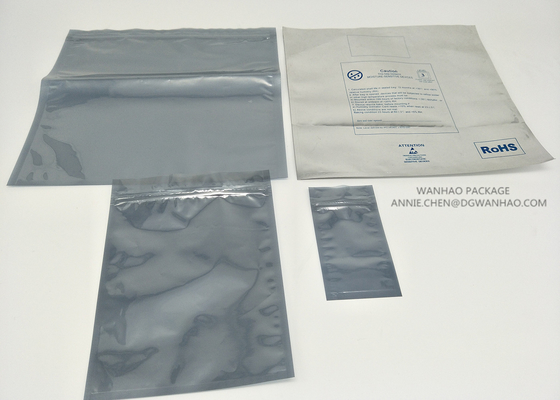

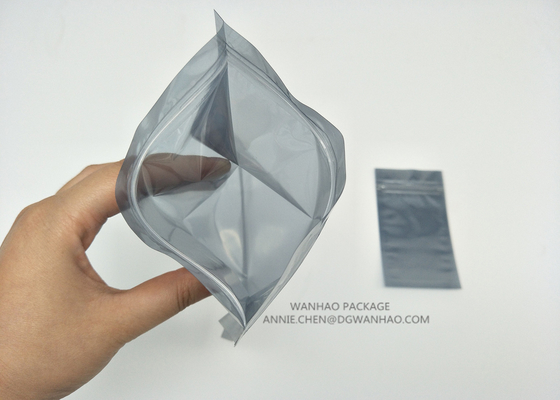

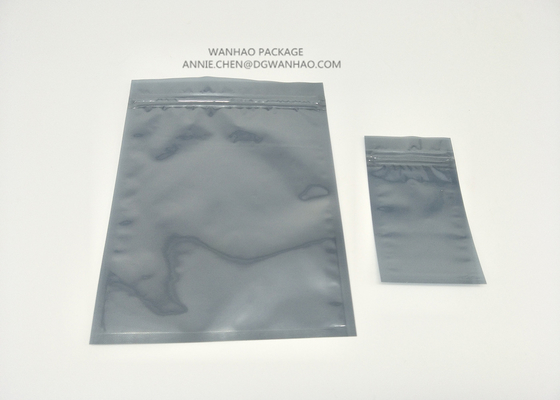

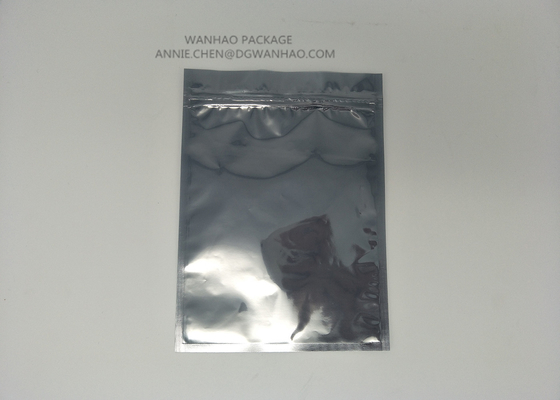

Vacuumable Semi - transparent Anti Static Shielding Ziplock ESD Bags With Custom Printing
Anti-static shielding bag
*Material:3-layer PET/VM-PET/PE lamianted structure
*Static shielding:<30V
*Static discharging time:<0.03S
*Surface resistance:10^3~10^11 Ohm
Surface Coating: Electrostatic Oil
*Suitable for PCB,IC CD-ROM,hard disk and other static sensitive components packing
*Feature:half transparent design in easy to check the item inside
*Standard:ASTMD257,ELA541,MIL-B1705 MIL-STD-2073-1,ASTM F 1249-2005,GB/T 10004-1998,MIL-B-81705-C
*Different sizes available
Material and weight ratio:PET 12 11.8%,PE135 87.0%,PU 1.3%
Average thickness:0.149mm+0.007mm
Weight/m2:142.8+7.1g/m2
Size deviation:Less than+2.0%
Sealing deviation:less than+2.0mm
Transverse displacement:Less than 2.0mm
Surface resistivity: Less than 10^11 Ohm,normal 10^3~10^10 Ohm
(relative humidity>=under 50%)
Electrostatic shielding voltage:Less than 30V
Heat sealing strength:No less than 20N/15mm
1.High performance materials laminated.
2.Superior puncture resistance
3.Certificate film.
ESD bag with Moisture barrier,superior puncture resistance
Materials instructure: PET/AL(NY)/CPE,PET/AL/CPP,etc
ESD BAG Features:
1.Protect inside products from static
2.Good ability of moisture barrier and superior puncture resistance.
3.Superior filtering function of oxygen.
4.Vaccum available when foil bag composed of four layers.
5.Customer design available.
It is suitable for packing of PCB, IC and other static sensitive components.
The kind of bag can keep static-sensitive components away from the potential static danger to the largest extent.
Its special four -layer structure can create such effect as an inductive cover to separate the goods inside from the static field.
The inner layer is made from ethane which can remove the static and avoid static generation inside the bag.
This kind of hot seal bag is transparent, so the goods inside can be easily recognized from outside. The surface resistance: 10e8~10e11Ω
And physical property meet the ASTMD257, ELA541 and MIL-B-81705 international standards
Notice:
*Standard thickness 0.073mm
*Open top
*Open from the small side
*Two or three sides 5mm seal
*Zipper from the open top 15mm
ESD BAG Usage:
Widely used for packing PC board , computer main board , sound card , VGA card,
network card and static sensitive electronic devices.
Free samples available but delivery charge.
