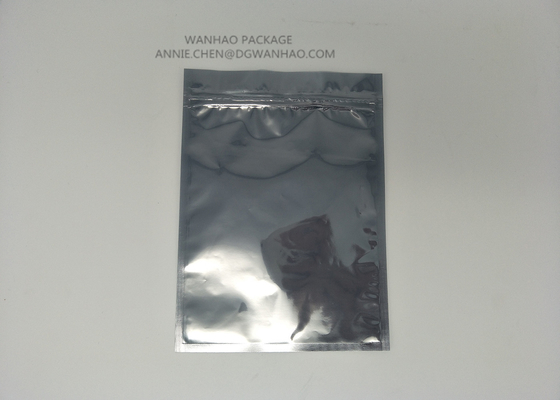

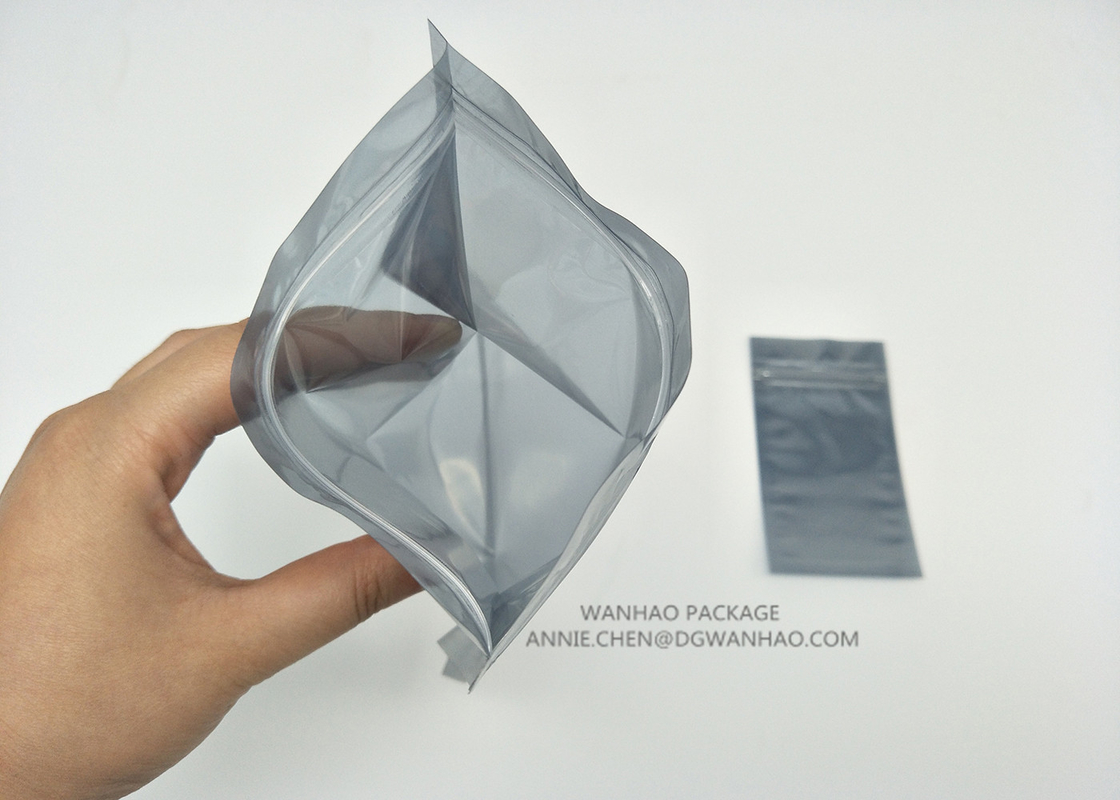

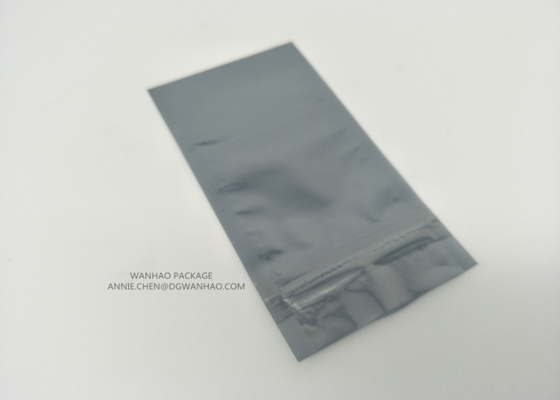

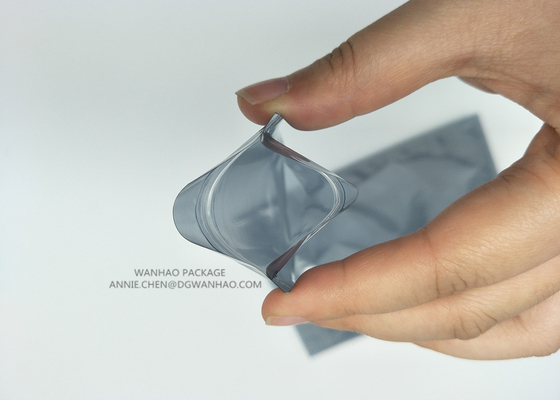

ESD Moisture Barrier Bag

Product name: Shiny Silver Mylar ESD Resistance Moisture Barrier Bag VMPET Metalized Foil Anti Static Bag
Material structure: Layers Laminated Materials
PET/VMPET/PE OR Metalized PET/PE
Feature: Offering superior protection against EMI ESD and moisture absorption
Appearance: Glossy
Printing: Customized
Surface Resistance: 10^3~10^10ohm
Thickness: Regular: 0.07mm~0.15mm, can be customized as well
Style of the bag: open top zipper top gusset
Usage: This kind of bag applies to package electronic products with moisture-proof requirement, such as PC boards, IC integrated circuit, CD driver, Hard Disk and electron Component parts, etc

Technical Data
1Metal Resistance ASTMD-257 <0.1Ω
2 Shielding Capabillity MIL-B-81705-C >60dB
3 Shielding Voltage EIA541 <10v
4 Tensile Strength FTMS101 >24Pa(10kg)
5 Water Vapour Transmission ASTM F 1249-2006 0.0006gm/100sq.in./24hrs
6 Oxygen transmission ASTM F 1249-2006 0.0006gm/100sq.in./24hrs
7 Inner surface Resistivity ASTMF-257 10^3~10^10Ω
8 Outer surface Resistivity ASTMF-257 10^3~10^10Ω
9 Heat seal temperature 170±10 ℃
10 Heat seal time Sec 0.3-0.5
11 Heat seal pressure Pa 40-60
12 Seal strength GB/96-04-10 >3kg/cm
13 Appearance GB/96-04-10 Nodelamination, wrinkle, warping, break
14 Size GB/96-04-10 Thickness±10%, Length±3mm, Width±2mm
